Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SBS, SBS
  • Model Number: Prefabricated Steel Structure Hangar
  • Material: Steel
  • Use: Carport, Office, Shop, Warehouse, Workshop,Plant, Hangar
  • Materials: Q235b Or Q345
  • Derusting: Ball Blast
  • Painting: Automatic Powder Coating Or Painting
  • Window: Pvc Window Or Aluminium Alloy Window
  • Door: Sandwich Panel Door Or Other Materials
  • Wall Panel: Sandwich Panel Or Corrugated Steel Sheet
  • Design: By Customized
  • Size: By Customized
  • Color: By Customized

Packaging & Delivery

Packaging Details Seaworthy
Delivery Time Within 30 days after receive deposits

Prefabricated Steel Frame Airplane Hangar Building

Product Description
  1. Steel structure components are made in the factory, which can reduce the workload, shorten the construction period, conform to the requirements of the industrialization, it can not only save resources but also reduce some unnecessary pollution
  2. The quality of steel structure factory production is reliable, precise size, easy to install, easy to cooperate with related department.3.
  3.  Light weight, high strength, the weight of steel structure building is 1/2 of the reinforced concrete building; Meet the needs of the houses are expounded and the net area is about 4% higher than that of reinforced concrete house.
  4. Steel can be recycled, thereless pollution to the environment construction and demolition. These advantages are the value of steel structure house. It used these advantages to prop up the "security umbrella" for life.
  5. Safety and reliability, good seismic and wind resistance performance, load capacity and seismic capacity can reach 8, flame to fail in the shock loss is its style.



Component

Specification

Main frame

Hot-dip galvanized or painted steel ,"H” steel, ”C” and ”Z ” cold-formed

thin-walled section steel

Roof

50mm-150mm EPS, PU, Rockwool sandwich panel/color steel roof sheet/

glazed roof tile

Wall

50mm-150mm EPS, PU, Rockwool sandwich panel.

Door

Sandwich panel door, security door or electric roller shutter door

Window

PVC sliding, aluminum alloy or shutter

Advantages

1. design according to customers’ requirements

2. manufacture under complete quality control system---ISO9001

3. installation with instruction of experienced engineers

4. easy to assemble and dismantle

5. Environmental protection material: can be used for several times and can

be recycled

6. shorter construction period, longer using time

7. high strength and stiffness, high weight bearing.

8. sound insulation and heat insulation; antisepsis and damp proofing;

waterproof and aseismatic



How to build a steel building?You should give us the following data:



Design Data

1.live load on roof(KN/M2)  2.wind speed(KM/H)  3.snow load (KG/M2) if have

4.earthquake load if have   5.crane (if have), lift height, lift capacity,

Size

1.width 2.length 3.eave height  4.roof slope

Type

1.single slope OR double slope       2.muti slope OR single span

3.double-span OR Multi-span        4.single floor OR two floors

Intercolumn

5m, or 6m….

Windows &Door

1.quantity    2.size   3.Location   4.PVC or aluminum

Column &Beam

straight cross-section OR Variable cross-section

Roof & Wall Panel

1.colorfull corrugated steel sheet   0.326~0.8mm thick ,YX28-205-820(820mm wide),
2.sandwich panel with EPS,ROCK WOOL,PU etc, insulation thickness around

30 ~300mm,

3.sheet+glass fiber(thick 50mm~200mm)

Purlin

1.C purlin size:120~C320,Z 2.purlin size100~Z200

Accessories

Do you need the skylight belts, Ventilators, down pipe, out gutter etc?

Surface Treatment

Shot blasting with anti rust paint or hot dip galvanize

If you need our help you design, please provide the following information:

Usage

Steel Structure workshop,warehouse,office or so on.

Size

length*width*high, and the ridge height, slope

Standard

China Standard,England Standard,America Standard or Australia

Standard(please supply the detail date)

Crane

Do you need the crane?If you need please tell me the loding.

Country

Which country that the building will be?

Design load

Wind speed, Snow load, Earthquake

Wall and Roof

Steel sheet or sandwich panel

Insulation

Fiber glass, EPS,Rock wool,PU,please tell me the thickness

Surface

Painted (alkyd paint or Epoxy paint) ,Hot dip galvanize

Window

Quantity, material, dimension (W*H) and position

Door

Quantity, material, dimension (W*H) and position

Accessories

Down pipe, Out gutter, Ventilator, skylight etc.

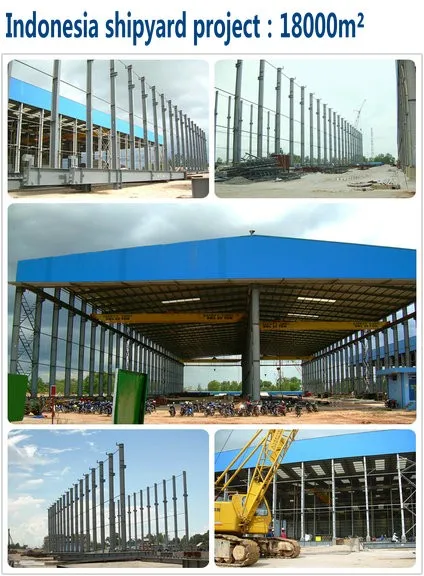

Our Market



Services

We can provide you with a complete service from quote, design, manufacture, etc, according to your requirements & drawing. The manufacture procedure including drilling, rust-removing, shot blasting, nondestructive detecting, painting and so on.

When designing and building any structure, there are many factors to consider such as safety, strength, cost and maintenance, etc. The materials must also be sustainable and environmental, thus to make a contribution towards the sustainability of the project itself.

Selecting the correct material for the task is vital, and this choice is now influenced by economic and environmental pressures that were not important several years ago. Save the tree and our earth, please choose light gauge steel framed house. Our technical and R&D support are ready to help you chose the correct grade of steel for each application, which can result in the most cost effective solutions for today's architecture, building and construction requirements.

Ending words

Company Profile:


Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production

line, so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many

high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable,

scientific and effective solution for customers.We regard practical growth, innovationand group solidarity as our company spirit, so that we can offer all round service to customers.

      FOSHAN SHENGBANG STEEL STRUCTURE CO., LTD



      Add:Pingtang Industrial Park, Shipeng Village, Shishan Town, Nanhai District,



            Foshan, Guangdong Province, China



      Tel:0086-757-63323396 Fax:0086-757-81196682
